PDF is the standard method for sharing documents. Add in 3D capabilities, and now you've got documents really worth sharing. With Presentation Studio you can create a Design Brief, Price Sheet, Technical Summary, Feature Review, or Product Specification in minutes. But unlike ordinarly PDFs, an embedded 3D model conveys your design in a way 2D just can't. The PDF can then be read on any computer with Adobe Acrobat 8 or above.
View a sample 3D PDF output file.
Now works with 64bit SolidWorks 2009! Requires SolidWorks 2009 SP03 or higher.
Getting Started

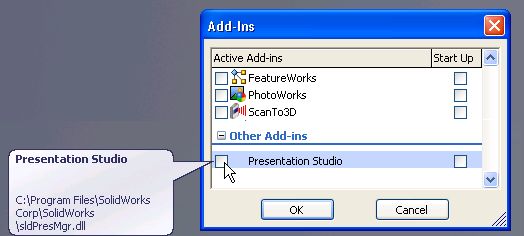

After downloading and installing the add-in, it will need to be activated in SolidWorks. Select the "Add-ins..." entry under the Tools menu, bringing up the Add-in Manager. Find the Presentation Studio entry and make sure both of its checkboxes are checked.

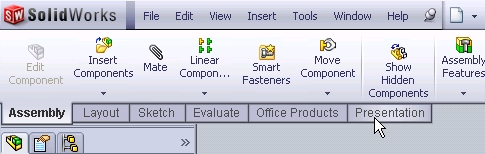

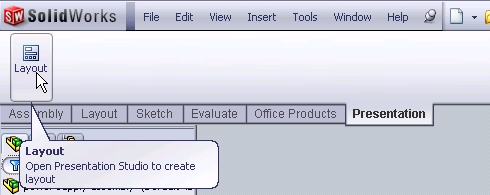

Now that add-in is loaded, there will be a new Presentation tab containing the Layout command. This will launch the Presentation Studio Layout Property Manager.
Download 32bit Presentation Studio
Download 64bit Presentation Studio
